Speedfit Logic System
The Speedfit Logic System is based on the Logic design layout.
The system components comprise;
15mm & 22mm flexible Speedfit PEX piping – available in coils of up to 50m

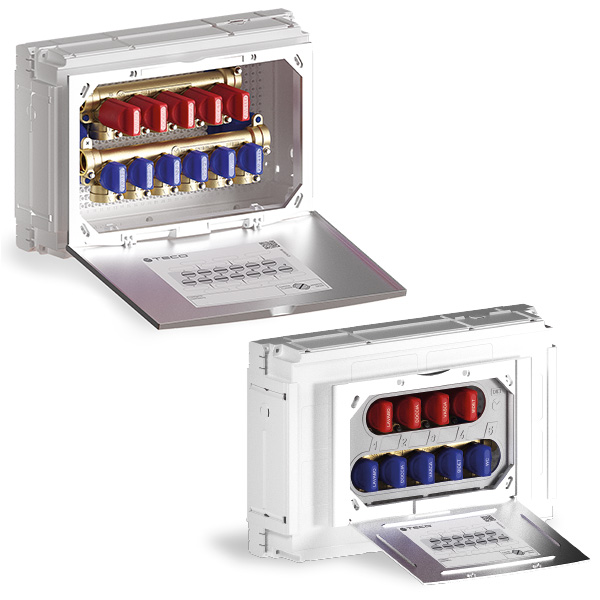

2, 3 and 4 port Speedfit Multiport Tees, Sanitary Manifolds and Cabinet Boxes
A range of Speedfit couplers, tap connectors, flexi-hoses and service valves
At Casaforte we provide developers, consultants and property owners with professional technical advice on how to get the best economy and performance efficiency from your project’s plumbing design and installation using the Speedfit Logic System.
We offer the following 2 alternative solutions;
Speedfit Logic Manifold System
Speedfit Logic Multiport-Tee System
This advanced system not only benefits from all the inherent advantages of the fast, easy, and leak-proof connections offered by Speedfit Technology, but has the added benefit of allowing for individual flow control to every fixture, and in the event of a problem the individual isolation of appliances, whilst leaving the rest of the system fully operational.

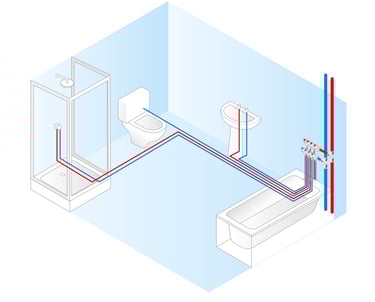

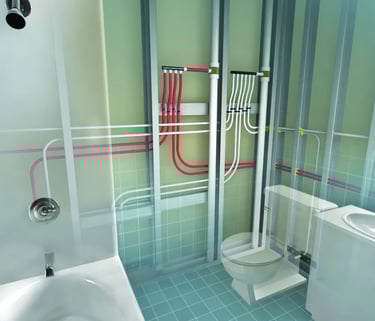

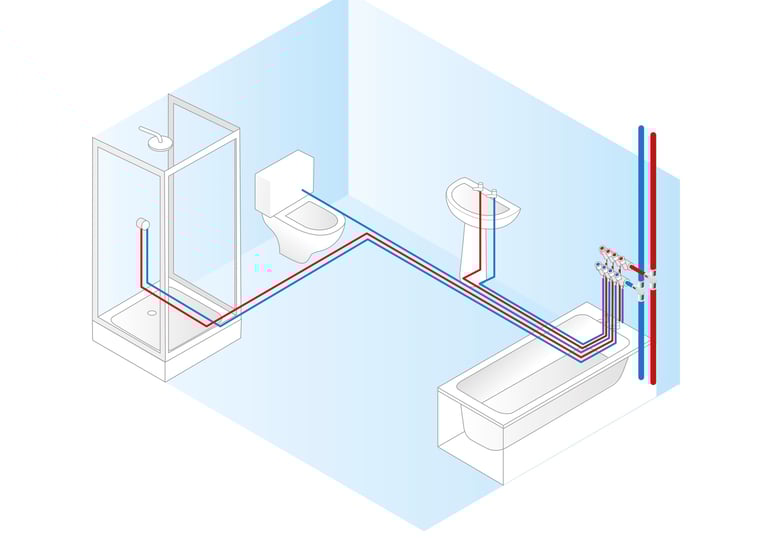

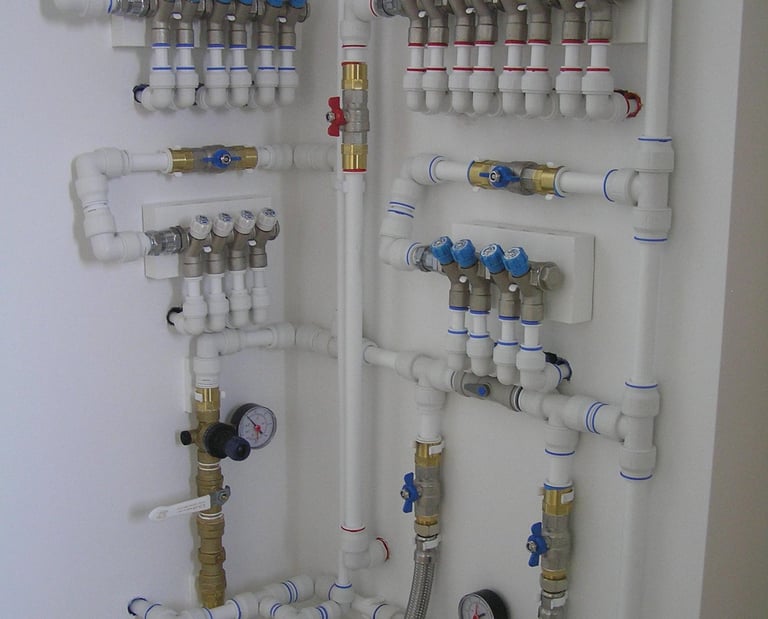

Speedfit Logic Manifold System

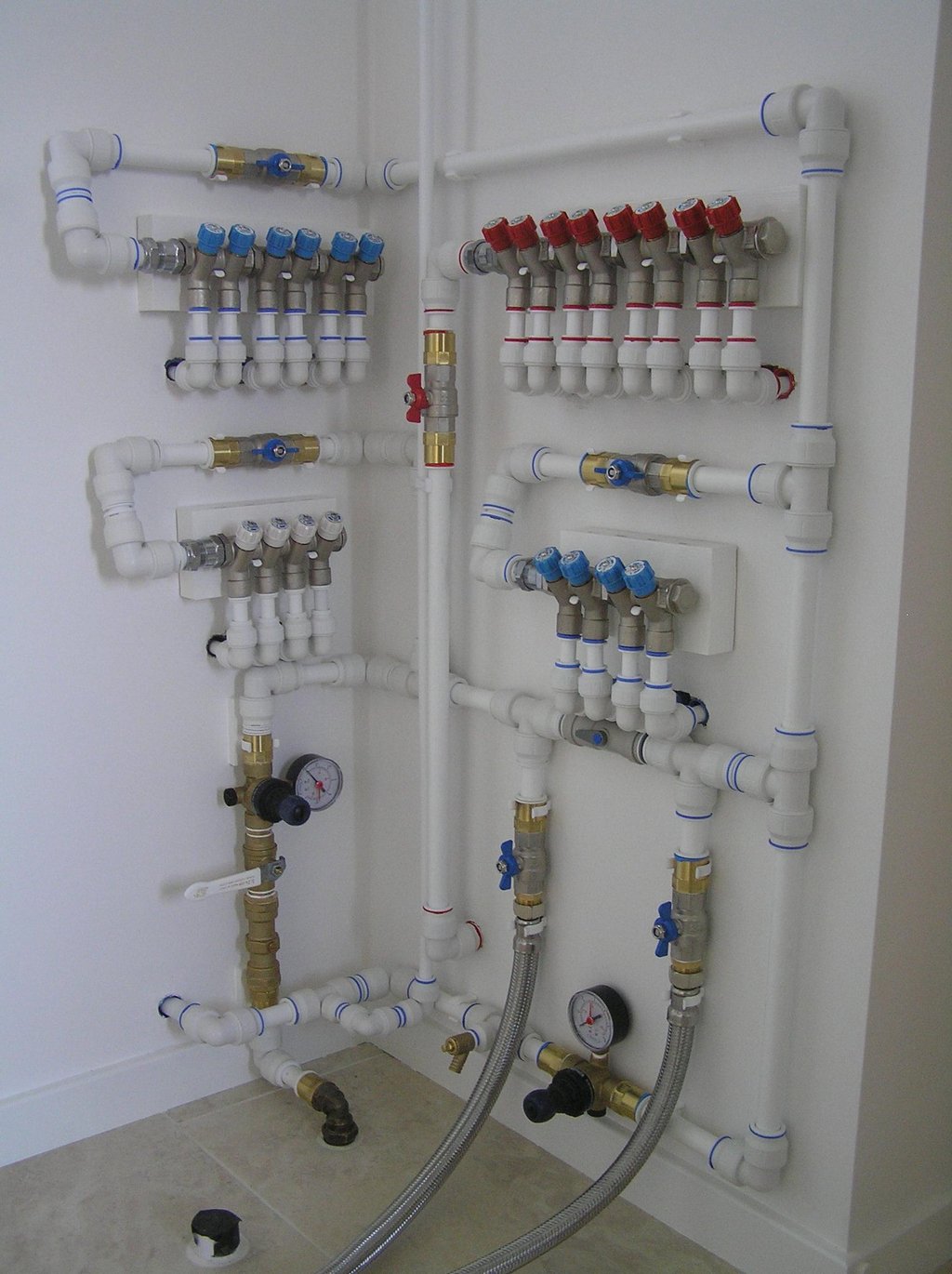

It means that the ‘manifold box becomes to plumbing what the consumer box is to electrics’, in that as each appliance has its own circuit of pipework, if the appliance leaks or is faulty that circuit can simply be turned ‘off’.

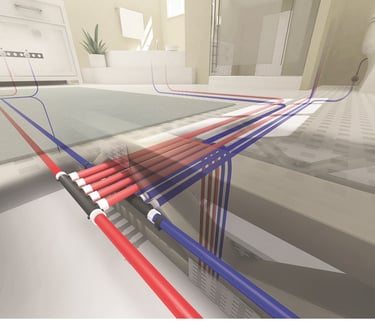

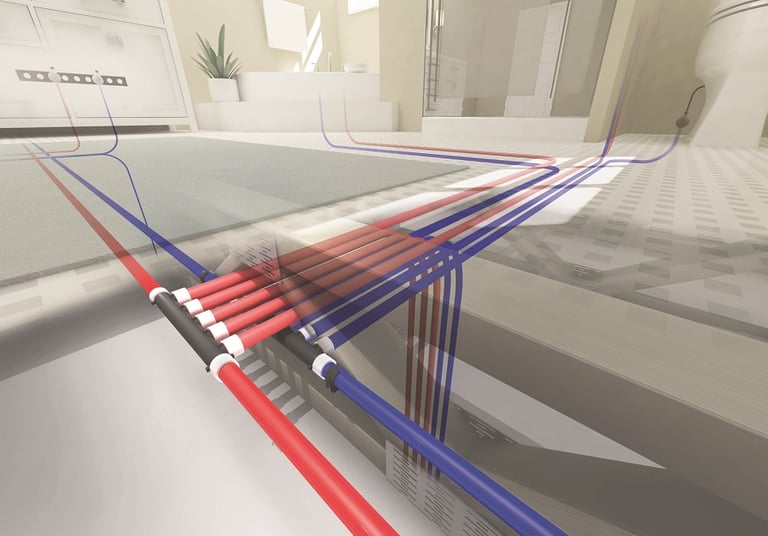

Speedfit Logic Multiport-Tee System
This alternative system offers a more economical Logic Design solution. It substitutes enclosed Multiport-Tees for the accessible valve manifolds distributing water to each fixtures zone. Whilst this option does not provide the same level of flow control to individual fixtures, it still delivers the high quality performance characteristics offered by Speedfit Technology.

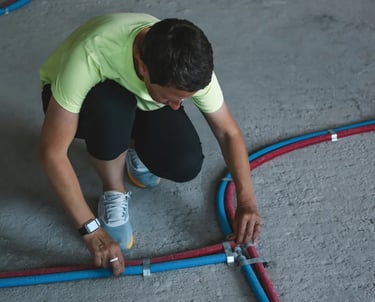

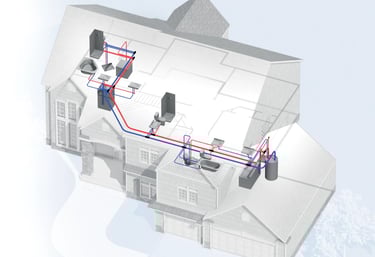

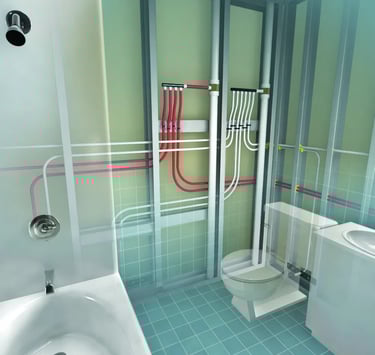

Both of these Speedfit Logic System options essentially allow for the hot and cold water supply in a building to be distributed directly from the supply points to the manifold boxes or multiport tees serving each fixtures zone, using continuous flexible PEX piping with no intermediate fittings, thereby completely removing the possibility of joint leaks. This allows for the piping to be safely embedded in floors, walls or ceilings without risk of leakage.
The Logic design also prevents pressure losses in the distribution network, ensuring good flow rates are maintained to all sanitary fixtures and appliances individually supplied from a manifold valve or multiport-tee.
